CHW(A)工業(yè)冷水機(jī) CHW(A)Industrial chillers
Update time：2010/11/1 15:30:32
Description:
- The previous:TCHW(A)冷熱一體模溫機(jī)TCHW(A) Series chilling-heating unit
- The next one:Mold Waterway Cleaning Machine
Introduction
Features ：
-
High-performanced functions
-
Adopting imported parts with electric in worldwide famous brand Using high-flowpressure imported pump,volute compressor,working smoothly and low noise.
-
Safty
-
Many types of protect functions,such as reverse 、 medium short 、 water pressure protect 、 overload protect 、 etc...Onec any trouble occurs 、 the machine will stop work to ensure the safe operating and long longevity of the machine.
-
Simple Operating
-
Pretty appearance and reasonable design to save space.

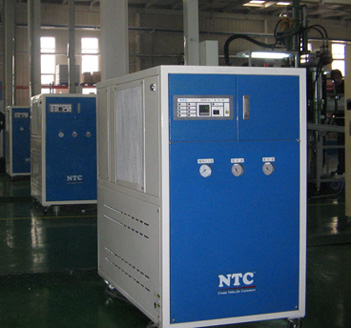

User site
：
Specification ：
| Model | CHW-03 | CHW-05 | CHW-08 | CHW-10 | CHW-12 | CHW-15 | CHW-20 | CHW-30 | |
| CHA-03 | CHA-05 | CHA-08 | CHA-10 | CHA-12 | CHA-15 | CHA-20 | CHA-30 | ||
| Medium temp'range | 5℃～30℃ | ||||||||
| Chilling way | CHA(Air type) OR CHW(Watertype) |
||||||||
| Chilling capacity |
KW | 10.25 | 16.8 | 26.8 | 35.5 | 40.6 | 52.5 | 68 | 105 |
| KCAL/H | 8815 | 14480 | 23134 | 30530 | 34916 | 45150 | 58480 | 90300 | |
| CHW Tank（Lr） |
54 | 54 | 173 | 190 | 212 | 230 | 242 | 272 | |
| CHA Tank（Lr） |
29 | 29 | 85 | 110 | 177 | 177 | 190 | 196 | |
| Compressor capacity（kw） |
2.25 | 3.75 | 6 | 7.5 | 9 | 11.25 | 15 | 11.25*2 | |
| CHA Fan capacity（kw） |
0.3 | 0.55 | 0.3*2 | 0.45*2 | 0.3*3 | 0.55*3 | 0.75*3 | 0.75*4 | |
| refrigerant | R-22 OR R407C | ||||||||
| Medium pump |
Output（kw） | 0.75 | 1.1 | 1.5 | 1.8 | 2.4 | 4 | 4.4 | 7.5 |
| Max flow（Lr/min) | 117 | 183 | 183 | 267 | 367 | 367 | 467 | 667 | |
| Max pressure（MPa） | 0.36 | 0.29 | 0.39 | 0.35 | 0.47 | 0.51 | 0.51 | 0.37 | |
| Connection | Chilling（Inch） | 1" | 1" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" |
| Cooling（Inch） | 1" | 1" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | |
| Water（Inch） | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
| Over（Inch） | 1/2" | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1" | |
| Drain（Inch） | 1/2" | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1" | |
| CHW Water volume（Lr/min） |
35 | 58 | 93 | 117 | 140 | 175 | 233 | 350 | |
| CHW power（kw） |
3 | 4.85 | 7.5 | 9.3 | 11.4 | 15.25 | 19.4 | 30 | |
| CHA power（kw） |
3.3 | 5.4 | 8.1 | 10.2 | 12.3 | 16.9 | 21.65 | 33.3 | |
| Power supply | AC 380V,50Hz,3P/200V,50Hz,3P Suitable for different countries |
||||||||
| Alarm functions | Medium short,Pump overload,Compressor overload,Compressor high pressure, Freeze, Water pressure abnormal | ||||||||
| CHA Dimension（mm） |
L（mm） | 630 | 630 | 850 | 850 | 1960 | 1960 | 2300 | 1200 |
| W（mm） | 900 | 900 | 1600 | 1600 | 900 | 900 | 950 | 3240 | |
| H（mm） | 1355 | 1390 | 1343 | 1690 | 1690 | 1780 | 1920 | 2286 | |
| Weight（kg） | 320 | 380 | 398 | 480 | 560 | 620 | 780 | 1200 | |
| CHW Dimension（mm） |
L（mm） | 700 | 700 | 700 | 750 | 800 | 900 | 950 | 1000 |
| W（mm） | 1000 | 1000 | 1300 | 1400 | 1500 | 1600 | 1700 | 1900 | |
| H（mm） | 1200 | 1200 | 1434 | 1507 | 1507 | 1610 | 1760 | 1815 | |
| Weight（kg） | 230 | 310 | 360 | 410 | 480 | 560 | 650 | 950 | |
